LIL FISH
Trading Terminal — Setup Guide
STEP 0
What's In The Box
📊

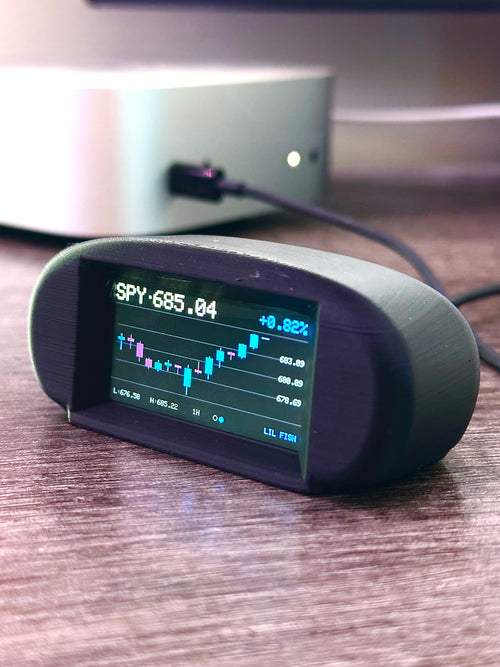

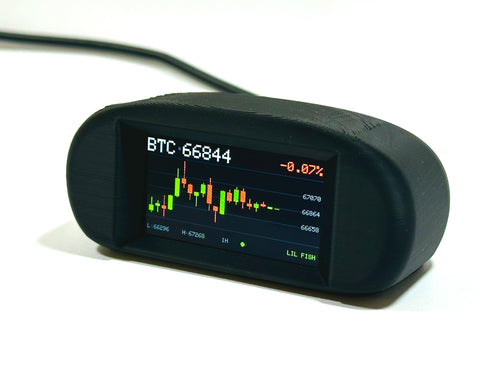

Lil Fish Trading Terminal
Your live market data display in a custom 3D printed enclosure
🔌
USB-C Cable
Power cable — plug into any USB wall adapter, power bank, or computer
🐟
Fish Key
Orange fish-shaped tool with googly eyes — used to open the side door for settings access
FIRST TIME SETUP
Get Your Terminal Running
1
Plug It In
Connect the USB-C cable to the back of the device and plug the other end into any USB power source — a wall adapter, a power strip, or your computer. The screen will light up and show the LIL FISH splash screen.
2
Connect to LilFish-Setup WiFi
On your phone, go to Settings → WiFi and look for a network called LilFish-Setup. Connect to it. There's no password — just tap to join.
TIP A webpage should open automatically. If it doesn't, open your phone's browser and go to 192.168.4.1
3
Configure Your Settings
The setup page lets you customize everything about your terminal:
WIFI
Your home WiFi name and password
ASSETS
Pick up to 6 — SPY, BTC, AAPL, Gold, and more
TIMEFRAME
15min, 1 hour, 4 hour, or daily candles
COLORS
Custom colors or animated themes
TIMEZONE
Your local timezone for the clock
AFTER HOURS
Aquarium, sunset, starfield, or clock
4
Save & Connect
Tap Save & Connect at the bottom. Your terminal will reboot, connect to your WiFi, and start showing live charts. Place it on your desk and enjoy.
THAT'S IT Your settings are saved permanently. Every time you plug it in, it automatically connects and starts showing your tickers. No setup needed again unless you want to make changes.
MAKING CHANGES
How to Update Your Settings
1
Grab Your Fish Key
Your orange Fish Key has a long tail at the bottom. Insert the tail into the small door on the side of the enclosure and gently bend it open.
2
Access the Buttons
With the door open, plug the USB-C cable into the side port and gently slide the screen out just enough to see the two small buttons on the edge of the board.
CAREFUL Don't pull the screen all the way out. There is a wire connecting the screen to the USB-C port on the back. Just slide it out enough to press the buttons.
3
Hold Both Buttons
Press and hold both buttons at the same time for 3 seconds. The screen will show "Entering Setup..." and broadcast the LilFish-Setup WiFi again.
4
Reconfigure & Reassemble
Connect to LilFish-Setup WiFi on your phone, make your changes, and hit Save & Connect. Push the screen back in, close the door, and you're all set.
FEATURES
What Your Terminal Can Display
Available Assets
STOCKS & ETFS
SPY, QQQ, DIA, IWM, AAPL, MSFT, AMZN, GOOGL, TSLA, NVDA, META
CRYPTO
Bitcoin, Ethereum, Solana, XRP, Dogecoin
COMMODITIES
Gold, Silver, Oil
FOREX
EUR/USD, GBP/USD, USD/JPY, AUD/USD
After-Hours Animations
When the stock market is closed, your terminal shows a relaxing scene. Crypto always shows live data.
🐠 Aquarium
🌅 Beach Sunset
✨ Starfield
🕒 Clock + Countdown
HELP
Troubleshooting
Screen is blank or won't turn on
Make sure the USB-C cable is fully plugged in and your power source is working. Try a different cable or adapter.
Can't find LilFish-Setup WiFi
Use the Fish Key to access the buttons and hold both for 3 seconds to force setup mode.
Wrong WiFi password entered
The device will retry then automatically re-enter setup mode. Connect to LilFish-Setup and re-enter your credentials.
Charts say "No data"
This can happen during weekends or low-volume periods. The price will still update — candles fill in when activity resumes.
Clock shows wrong time
Open the setup page and check your timezone setting.
LIL FISH Trading Terminal
Built by a trader, for traders.
Keep swimming 🐠
